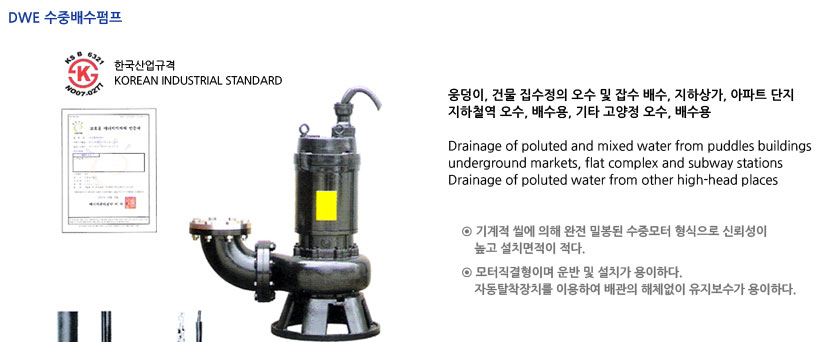

형식 (Model)   DWE
  토출량 (Capacity)   Max. 1.8㎥/min
  전양정 (Head)   Max. 58m
  온도 (Temperature)   Max. 40℃ 까지
  회전수 (Revolution)   3450 rpm
  구경 (Bore)   50 ~ 100mm (토출구경)

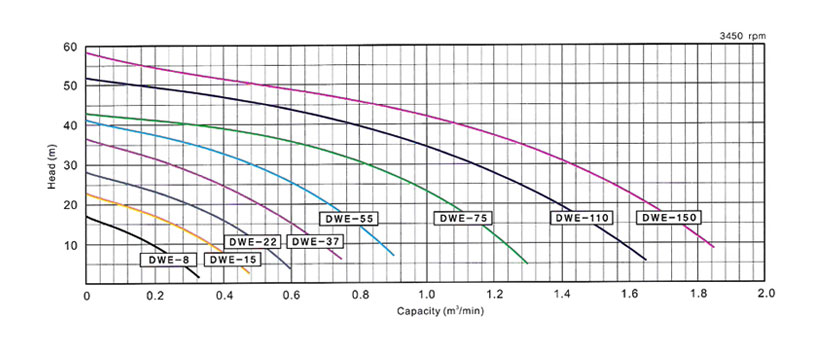

3450 rpm
MODEL 토출구경
(Dis.)		 동 력
kW		 토출량
(㎥/min)		 전양정
(m)		 중량
(kg)		 케이블
(m)		 인양선
(m)
DWE 8 50 mm 0.75 0.16 10 36 6 4
DWE 15 1.5 0.25 15 38 6
DWE 22 80 mm 2.2 0.3 20 51 6
DWE 37 3.7 0.5 20 77 6
DWP 55 5.5 0.6 25 89 6
DWE 75 100 mm 7.5 0.8 30 145 6
DWE 110 11 1.0 35 148 7
DWE 150 15 1.0 40 195 7

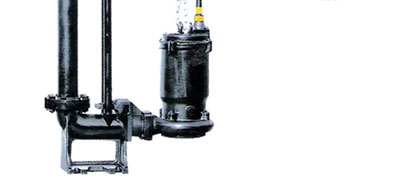

자동탈착장치
형식(Model) 구경(mm)
DAT 50 50
DAT 80 80
DAT 100 100

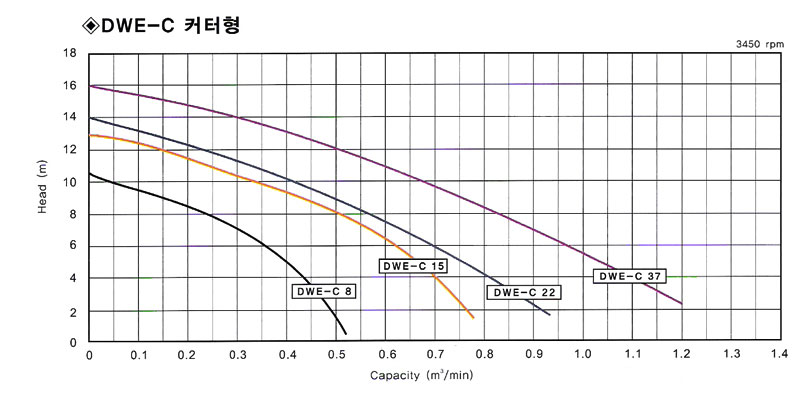

3450 rpm
MODEL 토출구경
(Dis.)		 동 력
kW		 토출량
(㎥/min)		 전양정
(m)		 중량
(kg)		 케이블
(m)		 인양선
(m)
DWE-C 8 50 mm 0.75 0.21 8 39 6 4
DWE-C 15 1.5 0.50 8 51 6
DWE-C 22 80 mm 2.2 0.40 10 105 6
DWE-C 37 3.7 0.50 12 120 6
자동탈착장치
형식(Model) 구경(mm)
DAT 50 50
DAT 80 80

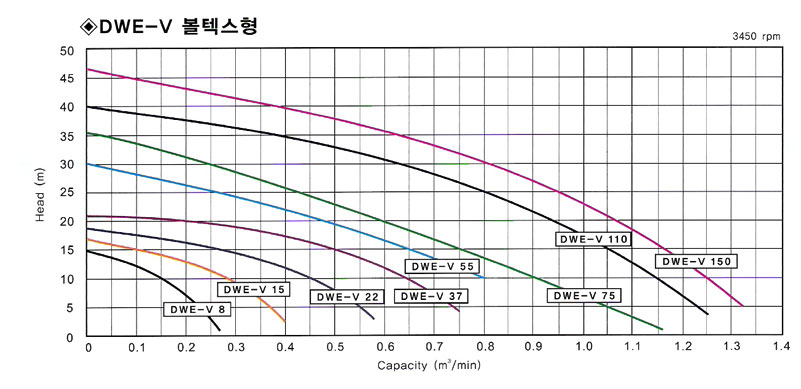

3450 rpm
MODEL 토출구경
(Dis.)		 동 력
kW		 토출량
(㎥/min)		 전양정
(m)		 중량
(kg)		 케이블
(m)		 인양선
(m)
DWE-V 8 50 mm 0.75 0.16 10 32 6 4
DWE-V 15 1.5 0.16 14 35 6
DWE-V 22 80 mm 2.2 0.4 12 48 6
DWE-V 37 3.7 0.4 18 72 6
DWE-V 55

5.5

 0.4 22 83 6
DWE-V 75 100 mm 7.5 0.6 20 140 6
DWE-V 110 11 0.8 25 158 7
DWE-V 150 15 0.8 30 165 7
자동탈착장치
형식(Model) 구경(mm)
DAT 50 50
DAT 80 80
DAT 100 100

구 분 케이싱 (Casing) 임펠러 (Impeller) 주축 (Shaft) 축봉장치 (Sealing)
기본재질 (Standard) GC200 GC200 STS410 Mechanical Seal
옵션재질 (Option) SSC13, SSC14 BC6, SSC13, SSC14 STS304, STS316, STS403

Item No Part Name Material
101 Casing GC 200
102 Impeller GC 200
103 Motor Frame GC 200
104 Motor Bracket GC 200
105 Shaft STS 410
106 Suction Cover GC 200
107 Suction Stand GC 200
108 Discharge Elbow GC 200
109 Bearing Housing GC 200
201 Rotor -
202 Stator -
301 Mechanical Seal -
302 Oil Seal NBR
401 Cable Cover SS 400
402 Eye Bolt SS 400
403 Bolt SS 400
404 Bearing Cover SS 400
405 Bearing -
501 Power Cable -

MODEL A B ØC D ØE H
DWE 8 410 250 185 185 215 450
DWE 15 420 250 210 190 235 470
DWE 22 440 260 210 220 235 490
DWE 37 520 300 250 250 320 620
DWE 55 560 320 250 250 320 620
DWE 75 580 330 310 310 320 810
DWE 110 580 330 310 310 320 810
DWE 150 580 330 310 310 320 850

MODEL 토출구경
(Dis.)		 동력
(kW)		 토출량
(㎥/min)		 양정
(m)

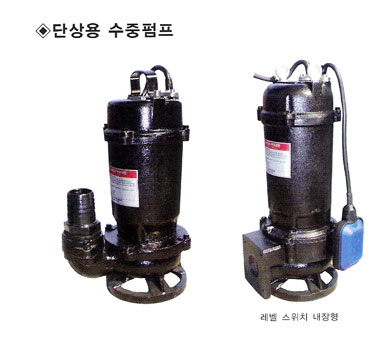

DWE 04-1 50mm 0.37 max. 0.2 max. 8
DWE 08-1 50mm 0.75 max. 0.25 max. 10
