| 규 격 |
WMA-04 |
WMA-08 |
WMA-15 |
WMA-22 |
WMA-37 |
WMA-55 |
WMA-75 |
WMA-110 |
| 토크 (N.m) |
8.5 |
14.2 |
15.3 |
55.1 |
56.8 |
68.8 |
173.1 |
180.3 |
|
| 규 격 |
WMA-150 |
WMA-190 |
WMA-220 |
WMA-300 |
WMA-370 |
WMA-450 |
WMA-550 |
WMA-750 |
| 토크 (N.m) |
193.1 |
330.1 |
351.82 |
380.24 |
452.76 |
546.84 |
840.6 |
867.3 |
|
|
| |
 |
|
| MODEL |
토크
(N.m) |

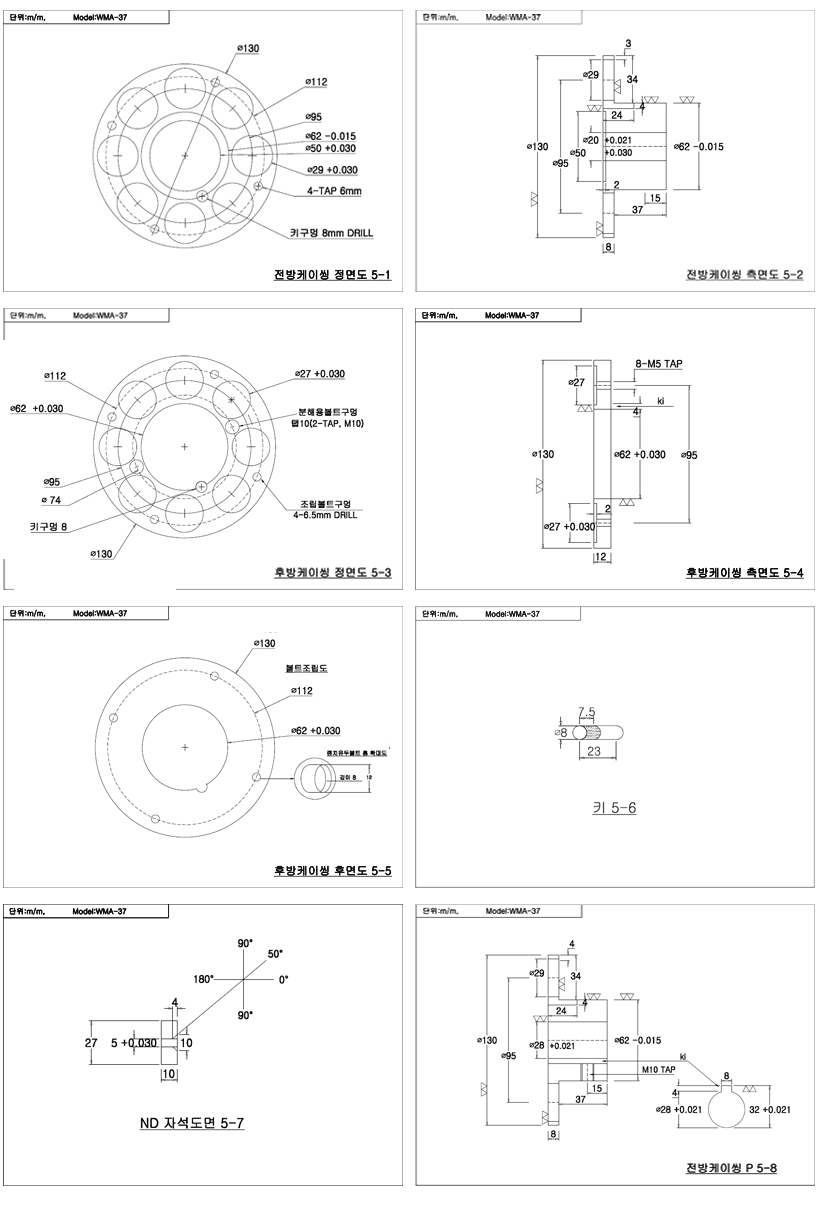

WMA 외형치수 (OUTLINE DIMENSIONS) |
Weight
(kg) |
자석크기
(SIZE) |
| R |
R1 |
R2 |
r(min) |
r(max) |
L |
W |
W1 |
W2 |
M.R |
k.t |
K |
m.r |
m.w |
m.t |
b.w |
| WMA-37 |
56.8 |
130 |
95 |
62 |
20 |
38 |
92 |
45 |
25 |
8 |
29 |
6 |
8 |
27 |
10 |
5 |
10 |
5 |
27X10 |
|
|
| |
|
 |
| |
| |
| |
|
|
